Marka:Siemens
Puan:0,00
Bizdeki Fiyatı:0,00 TL+ KDV
Kdv Dahil Fiyatı:0,00 TL
Havale Fiyatı:0,00 TL% 3,00 İndirim

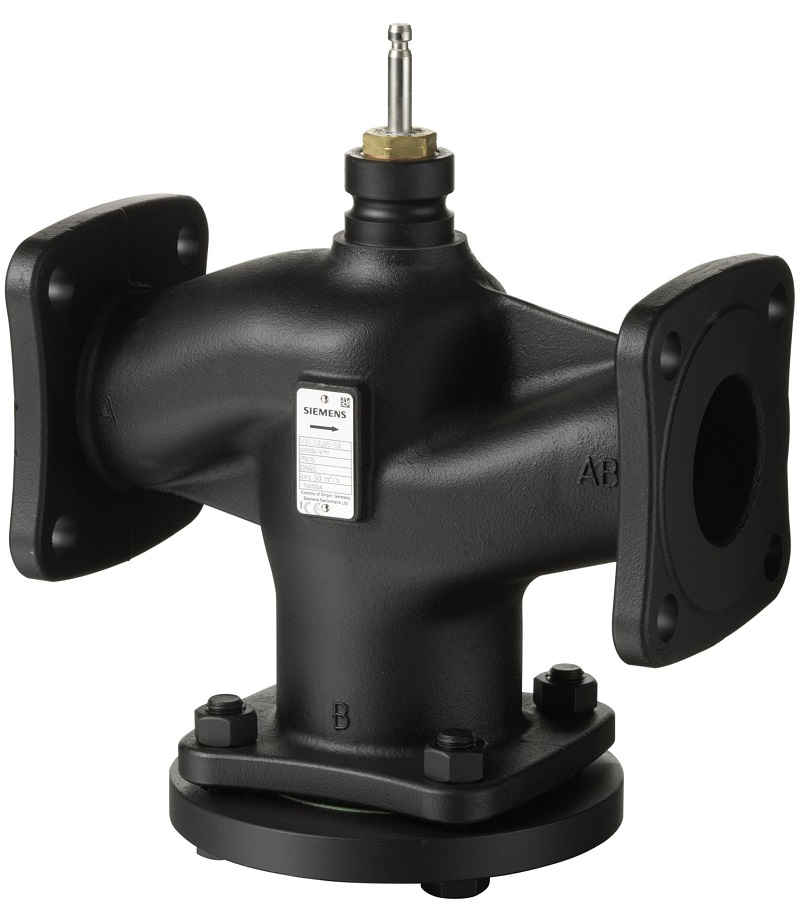

Siemens VVF42 2 Yollu Lineer Flanşlı Vana Gövdeleri

• 2 Yollu Flanşlı Bağlantı
• PN16 Basınç Sınıfı
•-10...150ºC Isıtma Uygulamaları

 Technical Specifications

Stroke   to DN80: 20 mm, from DN100: 40 mm
Leakage rate   0…0.02% of the kvs value
Medium temperature    -10…150 °C
Valve characteristic   Equal percentage , kvs 250/400 linear
Rangeability   DN 15...25: >50 , DN 32...150: >100
Permissible operating pressure   1600 kPa
Material, valve body   Cast iron EN-GJL-250
Material, inside set   ≤ DN40: CrNi steel / brass , ≥ DN50: CrNi steel / bronze
PN class   PN 16

Vana gövdeleri ;


İki Yollu, Flanşlı, Vanalar PN16

Model

Açıklama

VVF42.15-3

DN 15, Mil: 20mm, Kvs: 4

VVF42.20-6.3

DN 20, Mil: 20mm, Kvs: 6,3

VVF42.25-7.5

DN 25, Mil: 20mm, Kvs: 10

VVF42.32-16

DN 32, Mil: 20mm, Kvs: 16

VVF42.40-25

DN 40, Mil: 20mm, Kvs: 25

VVF42.50-42

DN 50, Mil: 20mm, Kvs: 40

VVF42.65-63

DN 65, Mil: 20mm, Kvs: 63

VVF42.80-100

DN 80, Mil: 20mm, Kvs: 100

VVF42.100-160

DN 100, Mil: 40mm, Kvs: 160

VVF42.125-250

DN 125, Mil: 40mm, Kvs: 250

VVF42.150-315

DN 150, Mil: 40mm, Kvs: 400

Vana Motorları Aktüatörler ;

• 24V 0..10V Oransal Motor Seçeneği
• 230V Yüzer Kontrol Motor Seçeneği
• Yay Geri Dönüş Seçeneği,Opsiyonel

Ölçü Kod Özellikler
DN25-DN32-DN40
DN50-DN65-DN80 		SAX31.00 Yüzer Kontrol Motor,120sn 230V, 800N,3P,
DN25-DN32-DN40
DN50-DN65-DN80 		SKD32.50 Yüzer Kontrol Motor,120sn 230V, 1000N,3P,
N100-DN125-DN150 SAV31.00 230V,1600N,3P,
Yüzer Kontrol Motor,
N100-DN125-DN150 SKC32.60 230V,2800N,3P,
Yüzer Kontrol Motor,120sn
DN25-DN32-DN40
DN50-DN65-DN80 		SKD32.51 Yüzer Kontrol Motor,120sn 230V, 1000N,3P,YGD’lü
N100-DN125-DN150 SKC32.61 230V,2800N,3P,YGD’lü,
Yüzer Kontrol Motor,120sn
DN25-DN32-DN40
DN50-DN65-DN80 		SAX61.03 Oransal Kontrol Motor,35sn 24V,800N,
DN25-DN32-DN40
DN50-DN65-DN80 		SKD60 Oransal Kontrol Motor,30sn 24V,1000N,
N100-DN125-DN150 SAV61.00 24V,1600N,
Oransal Kontrol Motor
N100-DN125-DN150 SKC60 24V,2800N,
Oransal Kontrol Motor,120sn
DN25-DN32-DN40
DN50-DN65-DN80 		SKD62 24V,1000N,Oransal Kontrol Motor,YGD’lü,30sn
N100-DN125-DN150 SKC62 24V,2800N,Oransal Kontrol
Motor,YGD’lü,120sn
