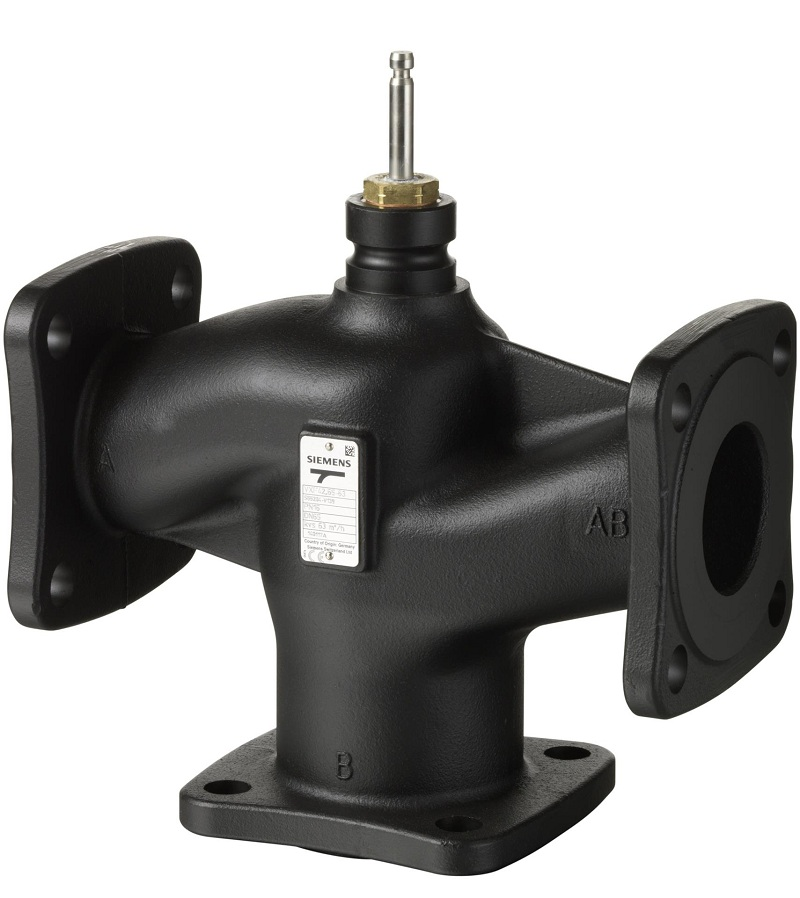

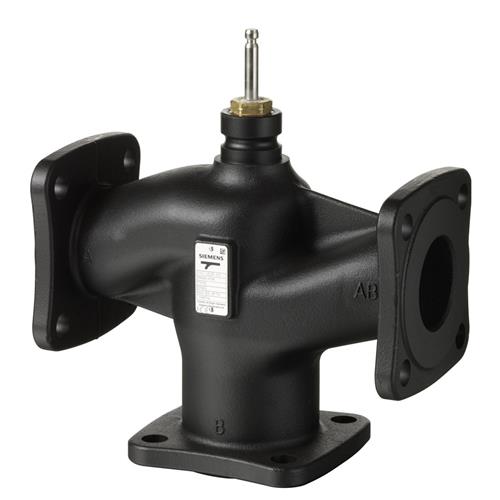

Siemens VXF42  3 Yollu Lineer Flanşlı Vana Gövdeleri

• 3 Yollu Flanşlı Bağlantı
• PN16 Basınç Sınıfı
•-10...150ºC Isıtma Uygulamaları

 Technical Specifications

Stroke   to DN80: 20 mm, from DN100: 40 mm
Leakage rate   0…0.02% of the kvs value
Leakage rate bypass   0.5...2 % of the kvs-value
Medium temperature    -10…150 °C
Valve characteristic   Through-port: equal percentage , Through-port: kvs 250/400 linear , Bypass: linear
Rangeability   DN 15...25: >50 , DN 32...150: >100
Permissible operating pressure   1600 kPa
Material, valve body   Cast iron EN-GJL-250
Material, inside set   ≤ DN40: CrNi steel / brass , ≥ DN50: CrNi steel / bronze
PN class   PN 16

Vana gövdeleri ;


Ölçü Kod Özellikler Liste Fiyat (€)
DN25 VXF42.25 3 Yollu, DN25,PN16,KVS:10 262,60
DN32 VXF42.32 3 Yollu, DN32,PN16,KVS:16 288,86
DN40 VXF42.40 3 Yollu, DN40,PN16,KVS:25 320,17
DN50 VXF42.50 3 Yollu, DN50,PN16,KVS:40 404,00
DN65 VXF42.65 3 Yollu, DN65,PN16,KVS:63 543,38
DN80 VXF42.80 3 Yollu, DN80,PN16,KVS:100 737,30
DN100 VXF42.100 3 Yollu, DN100,PN16,KVS:160 1.111,00
DN125 VXF42.125 3 Yollu, DN125,PN16,KVS:250 1.403,90
DN150 VXF42.150 3 Yollu, DN150,PN16,KVS:315 1.727,10

Vana Motorları Aktüatörler ;

• 24V 0..10V Oransal Motor Seçeneği
• 230V Yüzer Kontrol Motor Seçeneği
• Yay Geri Dönüş Seçeneği,Opsiyonel

Ölçü Kod Özellikler Liste Fiyat (€)
DN25-DN32-DN40
DN50-DN65-DN80 		SAX31.00 Yüzer Kontrol Motor,120sn 230V, 800N,3P, 323,20
DN25-DN32-DN40
DN50-DN65-DN80 		SKD32.50 Yüzer Kontrol Motor,120sn 230V, 1000N,3P, 507,02
N100-DN125-DN150 SAV31.00 230V,1600N,3P,
Yüzer Kontrol Motor, 		628,22
N100-DN125-DN150 SKC32.60 230V,2800N,3P,
Yüzer Kontrol Motor,120sn 		965,56
DN25-DN32-DN40
DN50-DN65-DN80 		SKD32.51 Yüzer Kontrol Motor,120sn 230V, 1000N,3P,YGD’lü 630,24
N100-DN125-DN150 SKC32.61 230V,2800N,3P,YGD’lü,
Yüzer Kontrol Motor,120sn 		1.131,20
DN25-DN32-DN40
DN50-DN65-DN80 		SAX61.03 Oransal Kontrol Motor,35sn 24V,800N, 416,12
DN25-DN32-DN40
DN50-DN65-DN80 		SKD60 Oransal Kontrol Motor,30sn 24V,1000N, 545,40
N100-DN125-DN150 SAV61.00 24V,1600N,
Oransal Kontrol Motor 		682,76
N100-DN125-DN150

SKC60

24V,2800N,
Oransal Kontrol Motor,120sn 		1.050,40
DN25-DN32-DN40
DN50-DN65-DN80 		SKD62 24V,1000N,Oransal Kontrol Motor,YGD’lü,30sn 664,58
N100-DN125-DN150 SKC6224V,2800N,Oransal Kontrol
Motor,YGD’lü,120sn 		1.212,00
